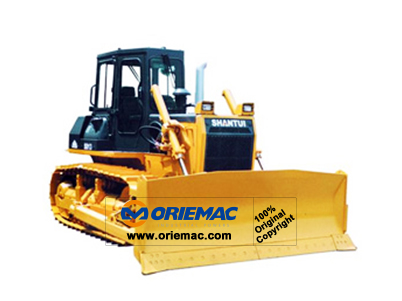

1.4ton Bulldozer SD13US

Quick Details

Feature: Bulldozer	Condition: New	Application: Construction
Brand Name: SHANTUI	Model Number: SD13US	Certification: ISO,CE
Rated Loading Capacity: 1.4t	Bucket Capacity: 3.5m3	Dimension:  5500*3510*2950 mm
Max. Lifting Load: 1.4t	Engine: SC8D143G2B1	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SD13US
Overall length	mm	5500
Overall width	mm	3510
Overall height	mm	2950
Ground contact length of track	mm	2365
Track shoe width	mm	700
Weight
Total weight	kg	14000
Power
Engine model		SC8D143G2B1
Engine rated power	kW	95.5
Engine rated speed	r/min	1900
Travel
Travel speed 1st (forward/backward)	km/h	3.2/3.9
Travel speed 2st (forward/backward)	km/h	5.9/7.1
Main performance
Operation weight	t	14
Blade capacity	m3	3.5
Gradeability	0	30
Ground pressure	kpa	0.042
Shovel blade width	m	3.51
Shovel blade height	m	1.03
Max. hoisting height	m	0.93
Max. digging depth	m	0.59
Max. gradient	m	0.4
Track gauge	m
Caterpillar track pitch	m	0.19
Min. swing radius	m
Min. ground clearance	m	0.32
