Home > Products > Bulldozer

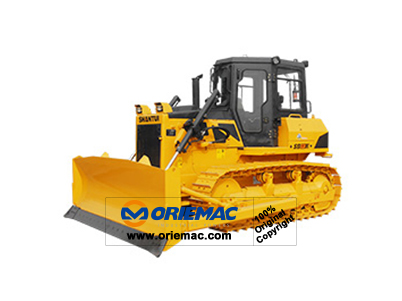

1.3ton Bulldozer SD13PLUS



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: SHANTUI

Model Number: SD13PLUS

Certification: ISO,CE

Rated Loading Capacity: 1.3t

Bucket Capacity: 2.33/3.158m3

Dimension:  4492*3185*2490 mm

Max. Lifting Load: 1.3t

Engine: SC8D143G2B1

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD13PLUS

Overall length

mm

4492

Overall width

mm

3185

Overall height

mm

2490

Ground contact length of track

mm

2365

Track shoe width

mm

460

Weight





Total weight

kg

13700

Power





Engine model



SC8D143G2B1

Engine rated power

kW

95.5

Engine rated speed

r/min

1900

Travel





Travel speed 1st (forward/backward)

km/h

3.2/3.9

Travel speed 2st (forward/backward)

km/h

5.9/7.1

Main performance





Operation weight

t

13.7

Blade capacity

m3

2.33/3.158

Gradeability

0

30

Ground pressure

kpa

0.063

Shovel blade width

m

3.185

Shovel blade height

m

1.09

Max. hoisting height

m

0.93

Max. digging depth

m

0.59

Max. gradient

m

0.55

Track gauge

m



Caterpillar track pitch

m

0.19

Min. swing radius

m



Min. ground clearance

m
