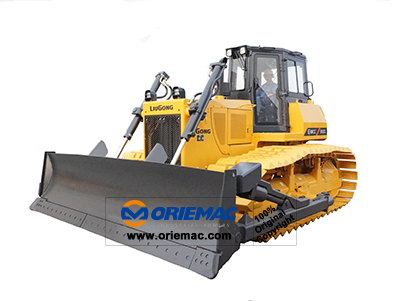

18.5ton Bulldozer B160CL

Quick Details

Feature: Bulldozer	Condition: New	Application: Construction
Brand Name: LIUGONG	Model Number: B160CL	Certification: ISO,CE
Gradeability: 300	Bucket Capacity: 3.8m3	Dimension:  5023*2390*3200mm
Ground pressure: kpa	Engine: WD10G178E25	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	B160CL
Overall length	mm	5023
Overall width	mm	2390
Overall height	mm	3200
Ground contact length of track	mm
Track shoe width	mm	1100
Weight
Total weight	kg	18500
Power
Engine model		WD10G178E25
Engine rated power	kW	120
Engine rated speed	r/min	1850
Travel
Travel speed 1st (forward/backward)	km/h	0~3.8/0~4.9
Travel speed 2st (forward/backward)	km/h	0~6.6/0~8.5
Main performance
Operation weight	t	18.5
Blade capacity	m3	3.8
Gradeability	0	30
Ground pressure	kpa
Shovel blade width	m	4.198
Shovel blade height	m	0.96
Max. hoisting height	m	1.005
Max. digging depth	m	0.485
Max. gradient	m
Track gauge	m
Caterpillar track pitch	m
Min. swing radius	m	4.6
Min. ground clearance	m	0.51
