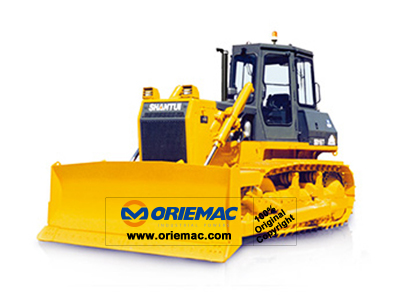

1.7ton Bulldozer SD16T

Quick Details

Feature: Bulldozer	Condition: New	Application: Construction
Brand Name: SHANTUI	Model Number: SD16T	Certification: ISO,CE
Rated Loading Capacity: 1.7t	Bucket Capacity: 4.3/4.5m3	Dimension:  5140*3388*3032mm
Max. Lifting Load: 1.7t	Engine: WD10G178E25 / SC11CB184G2B1	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SD16T
Overall length	mm	5140
Overall width	mm	3388
Overall height	mm	3032
Ground contact length of track	mm	2430
Track shoe width	mm	510
Weight
Total weight	kg	17000
Power
Engine model		WD10G178E25 / SC11CB184G2B1
Engine rated power	kW	120
Engine rated speed	r/min	1850
Travel
Travel speed 1st (forward/backward)	km/h	0-2.67/0-3.48
Travel speed 2st (forward/backward)	km/h	0-3.76/0-4.90
Main performance
Operation weight	t	17
Blade capacity	m3	4.3/4.5
Gradeability	0	30
Ground pressure	kpa	0.067
Shovel blade width	m	3.388
Shovel blade height	m	1.149
Max. hoisting height	m	1.096
Max. digging depth	m	0.54
Max. gradient	m	0.4
Track gauge	m	1.88
Caterpillar track pitch	m	0.2032
Min. swing radius	m	4.7
Min. ground clearance	m	0.4
