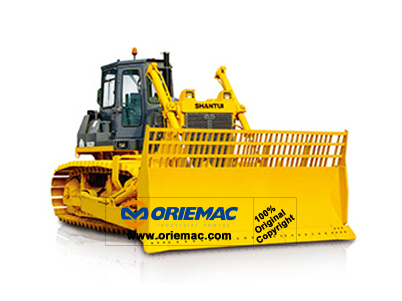

2.6ton Bulldozer SD22R

Quick Details

Feature: Bulldozer	Condition: New	Application: Construction
Brand Name: SHANTUI	Model Number: SD22R	Certification: ISO,CE
Rated Loading Capacity: 2.6t	Bucket Capacity: 12m3	Dimension:  6225*4365*3782mm
Max. Lifting Load: 2.6t	Engine: WD12G240E206 / NT855-C280S10	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SD22R
Overall length	mm	6225
Overall width	mm	4365
Overall height	mm	3782
Ground contact length of track	mm	3480
Track shoe width	mm	910
Weight
Total weight	kg	26000
Power
Engine model		WD12G240E206 / NT855-C280S10
Engine rated power	kW	162
Engine rated speed	r/min	1800
Travel
Travel speed 1st (forward/backward)	km/h	0-3.6/0-4.3
Travel speed 2st (forward/backward)	km/h	0-6.5/0-7.7
Main performance
Operation weight	t	26
Blade capacity	m3	12
Gradeability	0	30
Ground pressure	kpa	0.041
Shovel blade width	m	4.16
Shovel blade height	m	1.885
Max. hoisting height	m	1.33
Max. digging depth	m	0.55
Max. gradient	m	＞0.755
Track gauge	m	2.25
Caterpillar track pitch	m	0.216
Min. swing radius	m	3.3
Min. ground clearance	m	0.405
