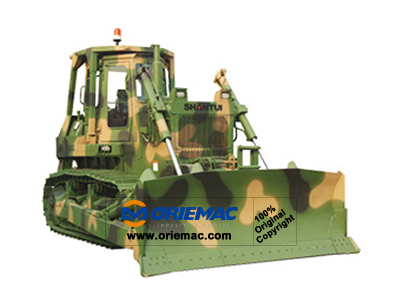

2.34ton Bulldozer SD22J

Quick Details

Feature: Bulldozer	Condition: New	Application: Construction
Brand Name: SHANTUI	Model Number: SD22J	Certification: ISO,CE
Rated Loading Capacity: 2.34t	Bucket Capacity: 4.7/6.4/7.0/7.5m3	Dimension:  5495*3725*3745mm
Max. Lifting Load: 2.34t	Engine: WD12G240E206 / NT855-C280S10	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SD22J
Overall length	mm	5495
Overall width	mm	3725
Overall height	mm	3745
Ground contact length of track	mm	2730
Track shoe width	mm	560
Weight
Total weight	kg	23400
Power
Engine model		WD12G240E206 / NT855-C280S10
Engine rated power	kW	162
Engine rated speed	r/min	1800
Travel
Travel speed 1st (forward/backward)	km/h	0-3.6/0-4.3
Travel speed 2st (forward/backward)	km/h	0-6.5/0-7.7
Main performance
Operation weight	t	23.4
Blade capacity	m3	4.7/6.4/7.0/7.5
Gradeability	0	30
Ground pressure	kpa	0.077
Shovel blade width	m	3.725
Shovel blade height	m	1.315
Max. hoisting height	m	1.21
Max. digging depth	m	0.54
Max. gradient	m	＞0.735
Track gauge	m	2
Caterpillar track pitch	m	0.216
Min. swing radius	m	3.3
Min. ground clearance	m	0.405
