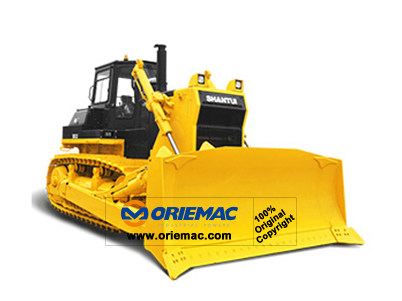

3.72ton Bulldozer SD32

Quick Details

Feature: Bulldozer	Condition: New	Application: Construction
Brand Name: SHANTUI	Model Number: SD32	Certification: ISO,CE
Rated Loading Capacity: 3.72t	Bucket Capacity: 6.2/10/11.7m3	Dimension:  8560*4130*3640mm
Max. Lifting Load: 3.72t	Engine: NTA855-C360S10	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SD32
Overall length	mm	8560
Overall width	mm	4130
Overall height	mm	3640
Ground contact length of track	mm	3150
Track shoe width	mm	560
Weight
Total weight	kg	37200
Power
Engine model		NTA855-C360S10
Engine rated power	kW	235
Engine rated speed	r/min	2000
Travel
Travel speed 1st (forward/backward)	km/h	0~3.6/0~4.4
Travel speed 2st (forward/backward)	km/h	0~6.6/0~7.8
Main performance
Operation weight	t	37.2
Blade capacity	m3	6.2/10/11.7
Gradeability	0	30
Ground pressure	kpa	0.105
Shovel blade width	m	4.13
Shovel blade height	m	1.59
Max. hoisting height	m	1.56
Max. digging depth	m	0.56
Max. gradient	m	0.1
Track gauge	m	2.14
Caterpillar track pitch	m	0.2286
Min. swing radius	m
Min. ground clearance	m
