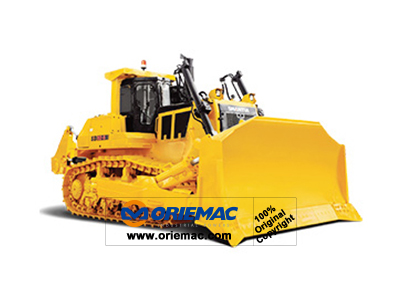

7.06ton Bulldozer SD52-5

Quick Details

Feature: Bulldozer	Condition: New	Application: Construction
Brand Name: SHANTUI	Model Number: SD52-5	Certification: ISO,CE
Rated Loading Capacity: 7.06t	Bucket Capacity: 18.5m3	Dimension:  10390*4690*4530mm
Max. Lifting Load: 7.06t	Engine: QSK19	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SD52-5
Overall length	mm	10390
Overall width	mm	4690
Overall height	mm	4530
Ground contact length of track	mm	3835
Track shoe width	mm	610
Weight
Total weight	kg	70600
Power
Engine model		QSK19
Engine rated power	kW	450
Engine rated speed	r/min	1800
Travel
Travel speed 1st (forward/backward)	km/h	3.8/5.1
Travel speed 2st (forward/backward)	km/h	6.8/9.2
Main performance
Operation weight	t	70.6
Blade capacity	m3	18.5
Gradeability	0	30
Ground pressure	kpa	0.147
Shovel blade width	m	4.695
Shovel blade height	m	2.25
Max. hoisting height	m	1.66
Max. digging depth	m	0.715
Max. gradient	m	0.73
Track gauge	m	2.5
Caterpillar track pitch	m	0.28
Min. swing radius	m	4.2
Min. ground clearance	m	0.609
