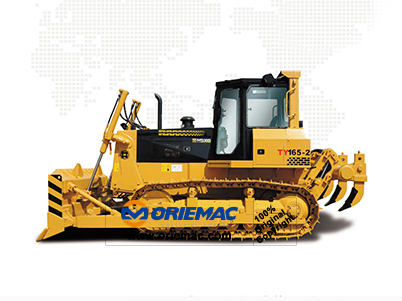

17.55ton Bulldozer TY165-2



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: HBXG

Model Number: TY165-2

Certification: ISO,CE

Gradeability: 30/250

Bucket Capacity: 4.6/5.2m3

Dimension:  5447*3442*3160mm

Ground pressure: 68.3/70.1kpa

Engine: WD10G178E25

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

TY165-2

Overall length

mm

5447

Overall width

mm

3442

Overall height

mm

3160

Ground contact length of track

mm



Track shoe width

mm

500

Weight





Total weight

kg

17550/18030

Power





Engine model



WD10G178E25

Engine rated power

kW

121

Engine rated speed

r/min

1850

Travel





Travel speed 1st (forward/backward)

km/h

0~3.32/0~4.0

Travel speed 2st (forward/backward)

km/h

0~6.26/0~7.57

Main performance





Operation weight

t

17.55/18.03

Blade capacity

m3

4.6/5.2

Gradeability

0

30/25

Ground pressure

kpa

68.3/70.1

Shovel blade width

m

3.442/3.467

Shovel blade height

m



Max. hoisting height

m



Max. digging depth

m

0.42/0.377

Max. gradient

m



Track gauge

m



Caterpillar track pitch

m

0.203

Min. swing radius

m



Min. ground clearance

m

0.3525
