Home > Products > Bulldozer

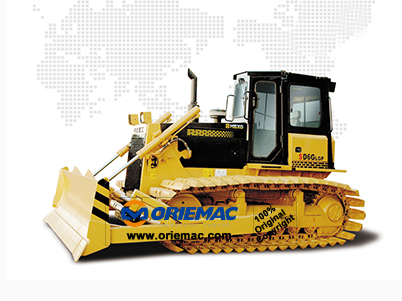

17.3ton Bulldozer SD6GLGP



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: HBXG

Model Number: SD6GLGP

Certification: ISO,CE

Gradeability: 30/250

Bucket Capacity: 4m3

Dimension:  5212*3770*3192mm

Ground pressure: 32.45kpa

Engine: SC11CB184G2B1

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD6GLGP

Overall length

mm

5212

Overall width

mm

3770

Overall height

mm

3192

Ground contact length of track

mm


Track shoe width

mm

930

Weight





Total weight

kg

17300

Power





Engine model



SC11CB184G2B1

Engine rated power

kW

119

Engine rated speed

r/min

1900

Travel





Travel speed 1st (forward/backward)

km/h

0~4/0~4.8

Travel speed 2st (forward/backward)

km/h

0~6.9/0~8.4

Main performance





Operation weight

t

17.3

Blade capacity

m3

4

Gradeability

0

30/25

Ground pressure

kpa

32.45

Shovel blade width

m

3.77

Shovel blade height

m


Max. hoisting height

m


Max. digging depth

m

0.592

Max. gradient

m


Track gauge

m


Caterpillar track pitch

m

0.2082

Min. swing radius

m


Min. ground clearance

m

0.445
