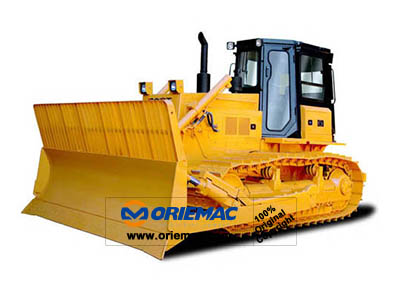

17.5ton Bulldozer SD6GHW



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: HBXG

Model Number: SD6GHW

Certification: ISO,CE

Gradeability:  0

Bucket Capacity: 4m3

Dimension:  5212*3564*3092mm

Ground pressure: 32kpa

Engine: C6121ZG55

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD6GHW

Overall length

mm

5212

Overall width

mm

3564

Overall height

mm

3092

Ground contact length of track

mm


Track shoe width

mm

610

Weight





Total weight

kg

17500

Power





Engine model



C6121ZG55

Engine rated power

kW

119

Engine rated speed

r/min

1900

Travel





Travel speed 1st (forward/backward)

km/h

0~4/0~4.8

Travel speed 2st (forward/backward)

km/h

0~6.9/0~8.4

Main performance





Operation weight

t

17.5

Blade capacity

m3

4

Gradeability

0


Ground pressure

kpa

32

Shovel blade width

m

3.564

Shovel blade height

m


Max. hoisting height

m


Max. digging depth

m

0.55

Max. gradient

m


Track gauge

m


Caterpillar track pitch

m

0.203

Min. swing radius

m


Min. ground clearance

m

0.475
