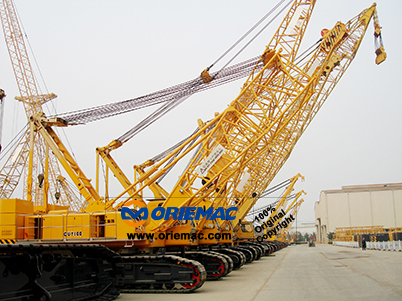

100ton Crawler Crane QUY100

Quick Details

Feature: Crawler Crane	Condition: New	Application: Construction
Brand Name: XCMG	Model Number: QUY100	Certification: ISO,CE
Rated Loading Capacity: 100t	Rated Lifting Moment: 5395kN.M	Dimension: 9600*3300*3300mm
Max. Lifting Load: 100t	Max. Lifting Height: 72m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	QUY100
Overall length	mm	9600
Overall width	mm	3300
Overall height	mm	3300
Weight
Total mass (main hook block, 18m boom)	t	114
Max. weight of base machine for transport	t	40
Power
Engine model		Volvo TAD722VE
Engine rated power	kW/(r/min)	200
Engine rated torque	N.m/(r/min)
Travel
Max. travel speed	km/h	1.1
Max. grade ability	%	30
Mean ground pressure	MPa	0.0927
Main performance
Max. rated total lifting capacity	t	100
Max. lifting torque	kN.m	5395
Base boom	m	18
Fully extended boom	m	72
Fully extended boom+ jib	m	96
Boom elevating angle	°	0～80
Working speed
Max. swing speed	r/min	1.4
Max. single rope hoist speed (no-load, sixth floor)	m/min	100
Max. single rope boom luffer speed (layer 1)	m/min	45
