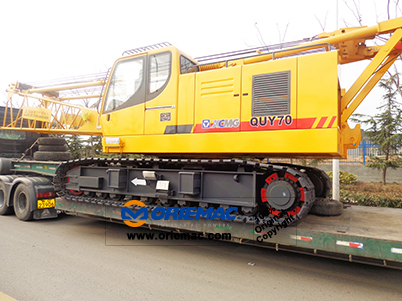

70ton Crawler Crane QUY70

Quick Details

Feature: Crawler Crane	Condition: New	Application: Construction
Brand Name: XCMG	Model Number: QUY70	Certification: ISO,CE
Rated Loading Capacity: 70t	Rated Lifting Moment: 2744kN.M	Dimension: 12600*3320*3230mm
Max. Lifting Load: 70t	Max. Lifting Height: 60m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	QUY70
Overall length	mm	12600
Overall width	mm	3320
Overall height	mm	3230
Weight
Total mass (main hook block, 13m boom)	t	61
Max. weight of base machine for transport	t	39
Power
Engine model
Engine rated power	kW/(r/min)	200
Engine rated torque	N.m/(r/min)
Travel
Max. travel speed	km/h	1.2
Max. grade ability	%	30
Mean ground pressure	MPa	0.087
Main performance
Max. rated total lifting capacity	t	70
Max. lifting torque	kN.m	2744
Base boom	m	13
Fully extended boom	m	58
Fully extended boom+ jib	m	76
Boom elevating angle	°	-3～80
Working speed
Max. swing speed	r/min	2.4
Max. single rope hoist speed (no-load, fifth floor)	m/min	120
Max. single rope boom luffer speed (layer 1)	m/min	57
