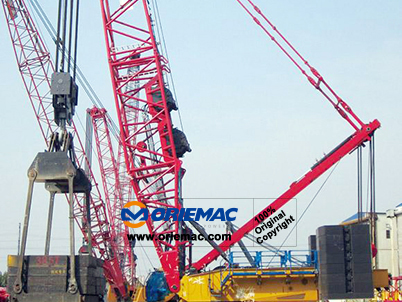

500ton Crawler Crane SCC5000A

Quick Details

Feature: Crawler Crane	Condition: New	Application: Construction
Brand Name: SANY	Model Number: SCC5000A	Certification: ISO,CE
Rated Loading Capacity: 500t	Rated Lifting Moment: 29400kN.M	Dimension: 13290*3000*3200mm
Max. Lifting Load: 500t	Max. Lifting Height: 84m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SCC5000A
Overall length	mm	13290
Overall width	mm	3000
Overall height	mm	3200
Weight
Total mass (with basic boom)	t	370
Max. single shipping weight	t	48.8/64.6
Power
Engine model
Engine rated power	kW/(r/min)	447/1800
Engine rated torque	N.m/(r/min)
Travel
Max. travel speed	km/h	0～1.2/0～0.35
Max. grade ability	%	30
Mean ground pressure	MPa	0.19
Main performance
Max. rated total lifting capacity	t	500
Max. lifting torque	kN.m	29400
Base boom	m	24
Fully extended boom	m	84
Fully extended boom+ jib	m	96
Boom elevating angle	°	30-85
Working speed
Max. swing speed	r/min	0~1
Max. single rope hoist speed	m/min	0~115
Max. single rope boom luffer speed	m/min	(0～60)×2
