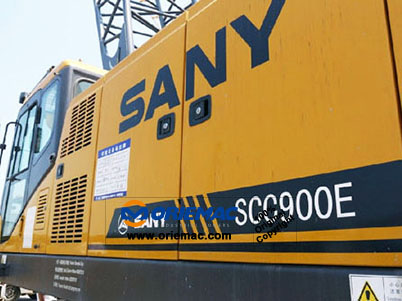

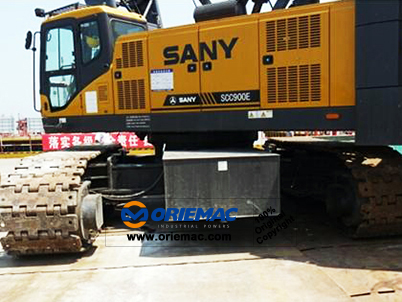

90ton Crawler Crane SCC900E

Quick Details

Feature: Crawler Crane	Condition: New	Application: Construction
Brand Name: SANY	Model Number: SCC900E	Certification: ISO,CE
Rated Loading Capacity: 90t	Rated Lifting Moment: 3528kN.M	Dimension: 13300*3490*3450mm
Max. Lifting Load: 90t	Max. Lifting Height: 61m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SCC900E
Overall length	mm	13300
Overall width	mm	3490
Overall height	mm	3450
Weight
Total mass (with basic boom)	t	85
Max. single shipping weight	t	43
Power
Engine model
Engine rated power	kW/(r/min)	179/2200
Engine rated torque	N.m/(r/min)
Travel
Max. travel speed	km/h	0~1.5
Max. grade ability	%	30
Mean ground pressure	MPa	0.085
Main performance
Max. rated total lifting capacity	t	90
Max. lifting torque	kN.m	3528
Base boom	m	13
Fully extended boom	m	61
Fully extended boom+ jib	m	79
Boom elevating angle	°	30~80
Working speed
Max. swing speed	r/min	0~3.2
Max. single rope hoist speed	m/min	0~120
Max. single rope boom luffer speed	m/min	0～58
