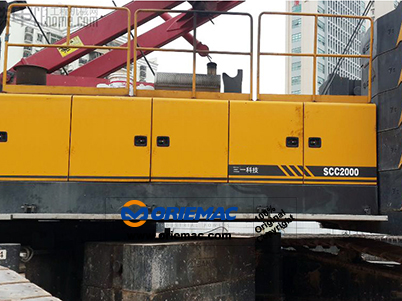

210ton Crawler Crane SCC2000

Quick Details

Feature: Crawler Crane	Condition: New	Application: Construction
Brand Name: SANY	Model Number: SCC2000	Certification: ISO,CE
Rated Loading Capacity: 210t	Rated Lifting Moment: 9878.4kN.M	Dimension: 12200*3420*3670mm
Max. Lifting Load: 210t	Max. Lifting Height: 85.5m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SCC2000
Overall length	mm	12200
Overall width	mm	3420
Overall height	mm	3670
Weight
Total mass (with basic boom)	t	210
Balance weight	t	100
Power
Engine model
Engine rated power	kW/(r/min)	242/2100
Engine rated torque	N.m/(r/min)
Travel
Max. travel speed	km/h	0.65/1.3
Max. grade ability	%	30
Mean ground pressure	MPa	0.11
Main performance
Max. rated total lifting capacity	t	210
Max. lifting torque	kN.m	9878.4
Base boom	m	40.5
Fully extended boom	m	85.5
Fully extended boom+ jib	m	116.5
Boom elevating angle	°	30-81
Working speed
Max. swing speed	r/min	1.35
Max. single rope hoist speed	m/min	0~120
Max. single rope boom luffer speed	m/min	(0～26)×2
