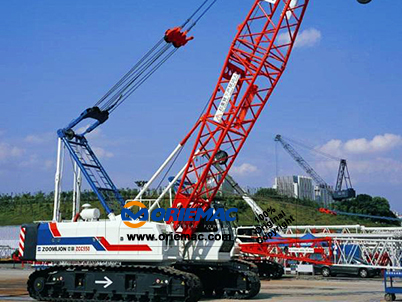

55ton Crawler Crane ZCC550

Quick Details

Feature: Crawler Crane	Condition: New	Application: Construction
Brand Name: ZOOMLION	Model Number: ZCC550	Certification: ISO,CE
Rated Loading Capacity: 55t	Rated Lifting Moment:  kN.M	Dimension: 12800*4600*3140mm
Max. Lifting Load: 55t	Max. Lifting Height: 52m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Span: 13	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	ZCC550
Overall length	mm	12800
Overall width	mm	4600
Overall height	mm	3140
Weight
Total mass (with basic boom)	t	51
Balance Weight	t	18
Power
Engine model		WP6G190E26
Engine rated power	kW/(r/min)	140/1900
Engine rated torque	N.m/(r/min)	830/1300
Travel
Max. travel speed	km/h	0~1.6
Max. grade ability	%	30
Mean ground pressure	MPa	0.069
Main performance
Max. rated total lifting capacity	t	55
Max. lifting torque	kN.m
Base boom	m	13
Fully extended boom	m	52
Fully extended boom+ jib	m	67
Boom elevating angle	°
Working speed
Max. swing speed	r/min	0~2.1
Max. single rope hoist speed	m/min	120
Max. single rope boom luffer speed	m/min	56
