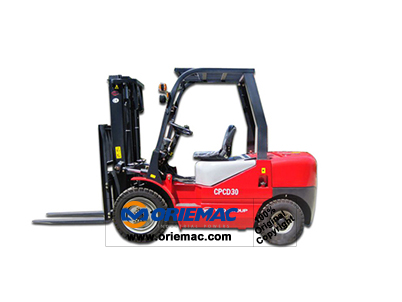

3ton Forklift CPCD30

Quick Details

Feature: Forklift	Condition: New	Application: Construction
Brand Name: YTO	Model Number: CPCD30	Certification: ISO,CE
Power type: Diesel	Engine: ISUZU	Dimension: 2770*1225*2160mm
Rated capacity: 3t	Rated power: 34.5/2500KW	Place of Origin: Henan, China (Mainland)
Warranty: 1 year	Transmission type: Hydraulic	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	CPCD30
Overall length	mm	2770
Overall width	mm	1225
Overall height	mm	2160
Weight
Total weight in travel	kg	4280
Power
Engine model		ISUZU C240
Engine rated power	kW/(r/min)	34.5/2500
Max. rotation	Nm/rpm	134/1800
Travel
Travel brake		Hydraulic-Foot pedal
Parking brake		Mechanical-Hand level
Lift speed (with/without load)	mm/s	400/440
Lower speed (with/without load)	mm/s	＜600 / ＞300
Travel speed (with/without load)	km/h	18/19
Main performance
Max. gradeability (with load)	%	20
Rated capacity	kg	3000
Load center	mm	500
Lift height	mm	3000
Mast tilt angle (forward/backward)	Deg	6/12
Wheel base	mm	1700
Tread (front/rear)	mm	1000/980
Min. turning radius	mm	2410
