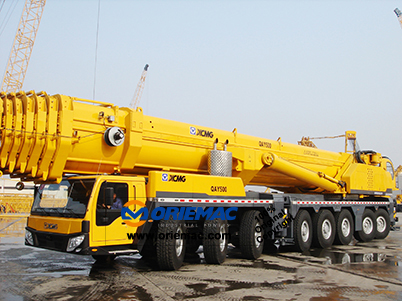

500ton All Terrain Crane QAY500

Quick Details

Feature: All Terrain Crane	Condition: New	Application: Construction
Brand Name: XCMG	Model Number: QAY500	Certification: ISO,CE
Rated Loading Capacity: 500t	Rated Lifting Moment: 15190kN.M	Dimension: 20900×3000×4000mm
Max. Lifting Load: 500t	Max. Lifting Height: 84m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Span:10.125/9.6m	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	QAY500
Overall length	mm	20900
Overall width	mm	3000
Overall height	mm	4000
Weight
Total weight in travel	kg	96000
Front axle load	kg	12000
Rear axle load	kg	12000
Power
Engine model		OM906LA
Engine rated power	kW/(r/min)	205/2100
Engine rated torque	N.m/(r/min)	1110/1200~1600
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	30
Min. ground clearance	mm	330
Approach angle	°	13
Departure angle	°	15
Max. grade ability	%	35
Fuel consumption for 100km	L	105
Main performance
Max. rated total lifting capacity	t	500
Min. rated working radius	m	3
Turning radius at turntable tail	m	6.76
Max. lifting torque	kN.m	15190
Base boom	m	16.1
Fully extended boom	m	84
Fully extended boom+ jib	m	140
Longitudinal outrigger span	m	10.125
Lateral outrigger span	m	9.6
Working speed
Boom luffing time	s	125
Boomfull extension time	s	960/900
Max. swing speed	r/min	0.8
Max. speed of main winch (single rope) (no load)	m/min	170
Max. speed of aux. winch (single rope) (no load)	m/min	170
