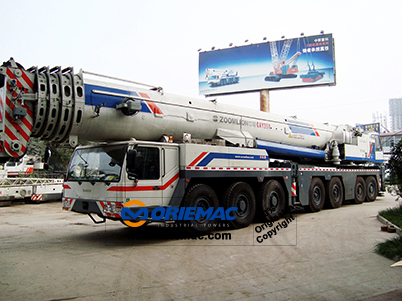

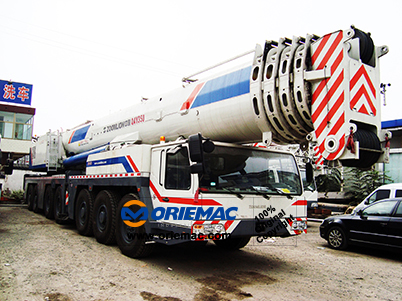

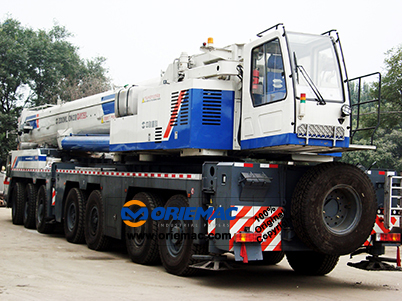

350ton All Terrain Crane QAY350

Quick Details

Feature: All Terrain Crane	Condition: New	Application: Construction
Brand Name: ZOOMLION	Model Number: QAY350	Certification: ISO,CE
Rated Loading Capacity: 350t	Rated Lifting Moment: 10819kN.M	Dimension: 19980×3000×4000mm
Max. Lifting Load: 350t	Max. Lifting Height: 62m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Span: 9/9m	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	QAY350
Overall length	mm	19980
Overall width	mm	3000
Overall height	mm	4000
Weight
Total weight in travel	kg	84200
Front axle load	kg	19600
Rear axle load	kg	35400
Power
Engine model		OM502LA
Engine rated power	kW/(r/min)	420/1800
Engine rated torque	N.m/(r/min)	2700/1080
Travel
Max. travel speed	km/h	76
Min. turning diameter	m	≤25.5
Min. ground clearance	mm	305
Approach angle	°
Departure angle	°
Max. grade ability	%	45
Fuel consumption for 100km	L	95
Main performance
Max. rated total lifting capacity	t	350
Min. rated working radius	m
Turning radius at turntable tail	m
Max. lifting torque	kN.m	10819
Base boom	m	15.6
Fully extended boom	m	61
Fully extended boom+ jib	m	103
Longitudinal outrigger span	m	9
Lateral outrigger span	m	9
Working speed
Boom luffing time	s	≥90
Boomfull extension time	s	≥540
Max. swing speed	r/min	≤1.4
Max. speed of main winch (single rope) (no load)	m/min	145
Max. speed of aux. winch (single rope) (no load)	m/min	64
