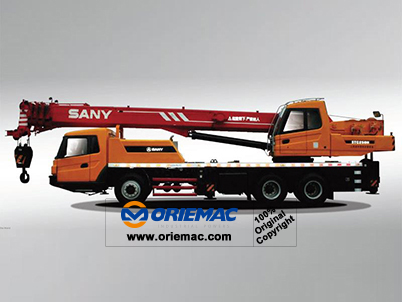

75ton Truck Crane STC750

Quick Details

Feature: Truck Crane	Condition: New	Application: Construction
Brand Name: SANY	Model Number: STC750	Certification: ISO,CE
Rated Loading Capacity: 75t	Rated Lifting Moment: 2400kN.M	Dimension: 14000×2750×3700mm
Max. Lifting Load: 75t	Max. Lifting Height: 12m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Span: 6.1/7.6m	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	STC750
Overall length	mm	14000
Overall width	mm	2750
Overall height	mm	3700
Weight
Total weight in travel	kg	45000
Front axle load	kg	19000
Rear axle load	kg	26000
Power
Engine model		WP10.336/SC9DK375Q3
Engine rated power	kW/(r/min)	275/276
Engine rated torque	N.m/(r/min)	1460/1200～1600，1500/1000～1500
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	23
Min. ground clearance	mm	290
Approach angle	°	≥20
Departure angle	°	≥12
Max. grade ability	%	40
Fuel consumption for 100km	L	≤45
Main performance
Max. rated total lifting capacity	t	75
Min. rated working radius	m
Turning radius at turntable tail	m
Max. lifting torque	kN.m	2400
Base boom	m	12
Fully extended boom	m	45
Fully extended boom+ jib	m	61
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.6
Working speed
Boom luffing time	s	120/100
Boomfull extension time	s	80/60
Max. swing speed	r/min	0～2.4
Max. speed of main winch (single rope) (no load)	m/min	130
Max. speed of aux. winch (single rope) (no load)	m/min	130
