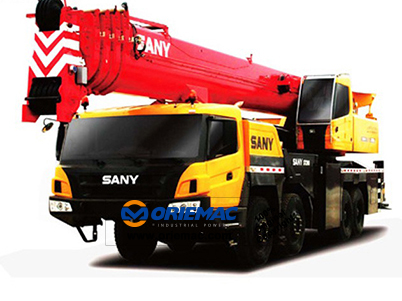

90ton Truck Crane STC900

Quick Details

Feature: Truck Crane	Condition: New	Application: Construction
Brand Name: SANY	Model Number: STC900	Certification: ISO,CE
Rated Loading Capacity: 90t	Rated Lifting Moment: 3500kN.M	Dimension: 15420×2800×4000mm
Max. Lifting Load: 90t	Max. Lifting Height: 13.2m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Span: 8.375/7.9m	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	STC900
Overall length	mm	15420
Overall width	mm	2800
Overall height	mm	4000
Weight
Total weight in travel	kg	46000
Front axle load	kg	20000
Rear axle load	kg	26000
Power
Engine model
Engine rated power	kW/(r/min)	275
Engine rated torque	N.m/(r/min)	2100
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	320
Approach angle	°	21
Departure angle	°	13
Max. grade ability	%	33
Fuel consumption for 100km	L	≤60
Main performance
Max. rated total lifting capacity	t	90
Min. rated working radius	m
Turning radius at turntable tail	m
Max. lifting torque	kN.m	3500
Base boom	m	13.2
Fully extended boom	m	49.5
Fully extended boom+ jib	m	67.4
Longitudinal outrigger span	m	8.375
Lateral outrigger span	m	7.9
Working speed
Boom luffing time	s
Boomfull extension time	s
Max. swing speed	r/min
Max. speed of main winch (single rope) (no load)	m/min
Max. speed of aux. winch (single rope) (no load)	m/min
