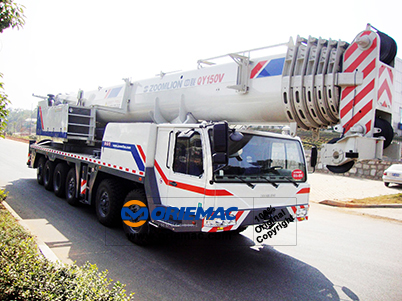

150ton Truck Crane QY150V

Quick Details

Feature: Truck Crane	Condition: New	Application: Construction
Brand Name: ZOOMLION	Model Number: QY150V	Certification: ISO,CE
Rated Loading Capacity: 150t	Rated Lifting Moment: 5292kN.M	Dimension: 14990×3000×3950mm
Max. Lifting Load: 150t	Max. Lifting Height: 78.4/86m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: white	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	QY150V
Overall length	mm	14990
Overall width	mm	3000
Overall height	mm	3950
Weight
Total weight in travel	kg	54900
Front axle load	kg	8700/8700/8700
Rear axle load	kg	20800(2 axles)/8000
Power
Engine model		OM502LA
Engine rated power	kW/(r/min)	390/1800
Engine rated torque	N.m/(r/min)	2400/1080
Travel
Max. travel speed	km/h	72
Min. turning diameter	m	≤24
Min. ground clearance	mm	280
Approach angle	°
Departure angle	°
Max. grade ability	%	40
Fuel consumption for 100km	L	85
Main performance
Max. rated total lifting capacity	t	150
Min. rated working radius	m
Turning radius at turntable tail	m
Max. lifting torque	kN.m	5292
Base boom	m	13.5
Fully extended boom	m	60
Fully extended boom+ jib	m	78.4/86
Longitudinal outrigger span	m	7.04
Lateral outrigger span	m	8.5/6.5
Working speed
Boom luffing time	s	78
Boomfull extension time	s	720
Max. swing speed	r/min	1.5
Max. speed of main winch (single rope) (no load)	m/min	110
Max. speed of aux. winch (single rope) (no load)	m/min	75
