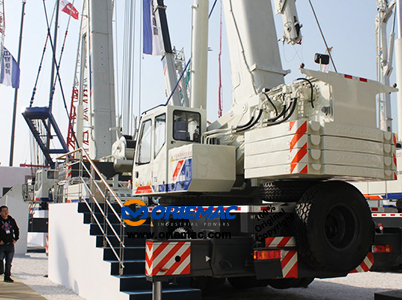

80ton Truck Crane QY80V

Quick Details

Feature: Truck Crane	Condition: New	Application: Construction
Brand Name: ZOOMLION	Model Number: QY80V	Certification: ISO,CE
Rated Loading Capacity: 80t	Rated Lifting Moment: 2940kN.M	Dimension: 14600×2800×3800mm
Max. Lifting Load: 80t	Max. Lifting Height: 64.5m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: white	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	QY80V
Overall length	mm	14600
Overall width	mm	2800
Overall height	mm	3800
Weight
Total weight in travel	kg	50000
Front axle load	kg	24000
Rear axle load	kg	26000
Power
Engine model
Engine rated power	kW/(r/min)
Engine rated torque	N.m/(r/min)
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	≤24
Min. ground clearance	mm	270
Approach angle	°
Departure angle	°
Max. grade ability	%	38
Fuel consumption for 100km	L	52
Main performance
Max. rated total lifting capacity	t	80
Min. rated working radius	m
Turning radius at turntable tail	m	4.3
Max. lifting torque	kN.m	2940
Base boom	m	13.2
Fully extended boom	m	47.2
Fully extended boom+ jib	m	64.5
Longitudinal outrigger span	m	6.2
Lateral outrigger span	m	7.6
Working speed
Boom luffing time	s	70
Boomfull extension time	s	140
Max. swing speed	r/min	0~2.2
Max. speed of main winch (single rope) (no load)	m/min	130
Max. speed of aux. winch (single rope) (no load)	m/min	110
