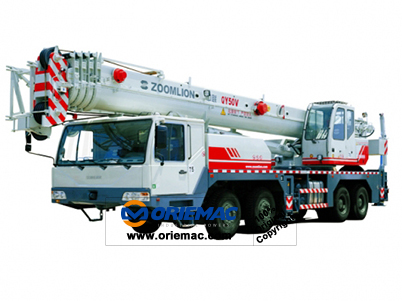

50ton Truck Crane QY50V

Quick Details

Feature: Truck Crane	Condition: New	Application: Construction
Brand Name: ZOOMLION	Model Number: QY50V	Certification: ISO,CE
Rated Loading Capacity: 50t	Rated Lifting Moment: 1764kN.M	Dimension: 13300×2750×3650mm
Max. Lifting Load: 50t	Max. Lifting Height: 58.3m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: white	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain  5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	QY50V
Overall length	mm	13300
Overall width	mm	2750
Overall height	mm	3650
Weight
Total weight in travel	kg	41000
Front axle load	kg	17200
Rear axle load	kg	23800
Power
Engine model		WP10.336
Engine rated power	kW/(r/min)	247/2200
Engine rated torque	N.m/(r/min)	1250/1200~1600
Travel
Max. travel speed	km/h	76
Min. turning diameter	m	12
Min. ground clearance	mm	280
Approach angle	°
Departure angle	°
Max. grade ability	%	40
Fuel consumption for 100km	L	48
Main performance
Max. rated total lifting capacity	kg	50000
Min. rated working radius	m
Turning radius at turntable tail	m
Max. lifting torque	kN.m	1746
Base boom	m	11.6
Fully extended boom	m	42.1
Fully extended boom+ jib	m	58.3
Longitudinal outrigger span	m
Lateral outrigger span	m
Working speed
Boom luffing time	s	50
Boomfull extension time	s	95
Max. swing speed	r/min	0~2
Max. speed of main winch (single rope) (no load)	m/min	130
Max. speed of aux. winch (single rope) (no load)	m/min	72
