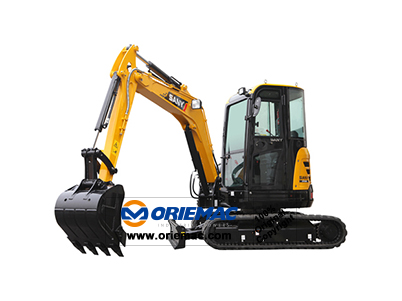

3.78ton Excavator SY35U

Quick Details

Feature: Excavator	Condition: New	Application: Construction
Brand Name: SANY	Model Number: SY35U	Certification: ISO,CE
Rated Loading Capacity: 3.78t	Bucket Capacity: 0.12m3	Dimension:  4915*1720*2515mm
Max. Lifting Load: 3.78t	Engine:	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	SY35U
Overall length	mm	4915
Overall width	mm	1720
Overall height	mm	2515
Track shoe length	mm	2155
Track shoe width	mm
Weight
Total weight	kg	3780
Power
Engine model
Engine rated power	kW	20.4
Engine rated speed	r/min	2200
Travel
Travel speed	km/h	4.4/2.4
Main performance
Rated load	t	3.78
Bucket capacity	m3	0.12
Gradeability	0	58
Ground pressure	kpa	32
Bucket digging force	KN	30.4
Arm digging force	KN	18.2
Max. tractive force	KN
Max. dumping clearance	m	3.46
Max. digging depth	m	3.105
Max. digging radius	m	5.465
Min. swing radius	m	2.475
Steering speed	r/min	9
Track gauge	m	1.42
Caterpillar wheelbase	m
Min. ground clearance	m	0.295
