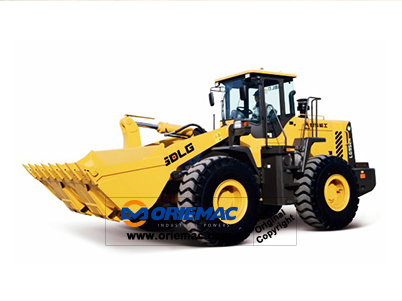

5.0ton Wheel Loader LG952H

Quick Details

Feature: Wheel Loader	Condition: New	Application: Construction
Brand Name: SDLG	Model Number: LG952H	Certification: ISO,CE
Rated Loading Capacity: 5.0t	Bucket Capacity: 2.4~4.5m3	Dimension: 7912×3024×3349mm
Max. Lifting Load: 5.0t	Engine: WD10G220E23	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	LG952H
Overall length	mm	7912
Overall width	mm	3024
Overall height	mm>	3349
Weight
Total weight	kg	16400~16450
Power
Engine model		WD10G220E23
Engine rated power	kW	162
Engine rated speed	r/min	2000
Travel
Travel speed 1st (forward/backward)	km/h	0~13/0~17
Travel?speed 2st (forward/backward)	km/h	0~38
Main performance
Rated load	t	5.0
Bucket capacity	m3	2.4~4.5
Dumping clearance	m	3.07~3.37
Dumping reach	m	1.16~1.19
Max. breakout force	KN	≥150
Max. traction force	KN	≥160
Articulation angle	0	41
Gradeability	0	28
Wheel base	m	2.84
Tread	m	2.25
Tyre size	m
Min. ground clearance	m	0.534
Min. turning radius	m	5.765
Working speed
Hydraulic cycle time – raise	s
Total hydraulic cycle time	s	≤10
